$1,879.00
These Units are now Shipping...

DESCRIPTION AND FEATURES

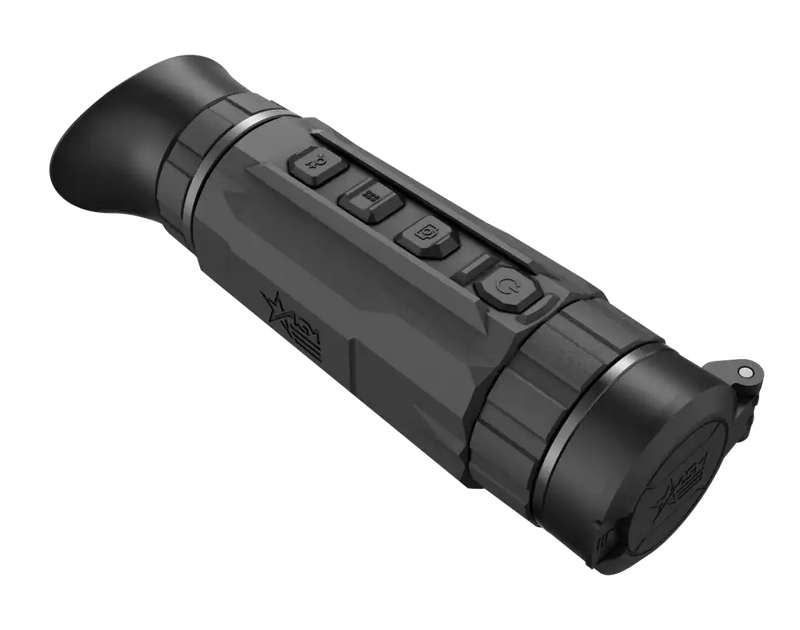

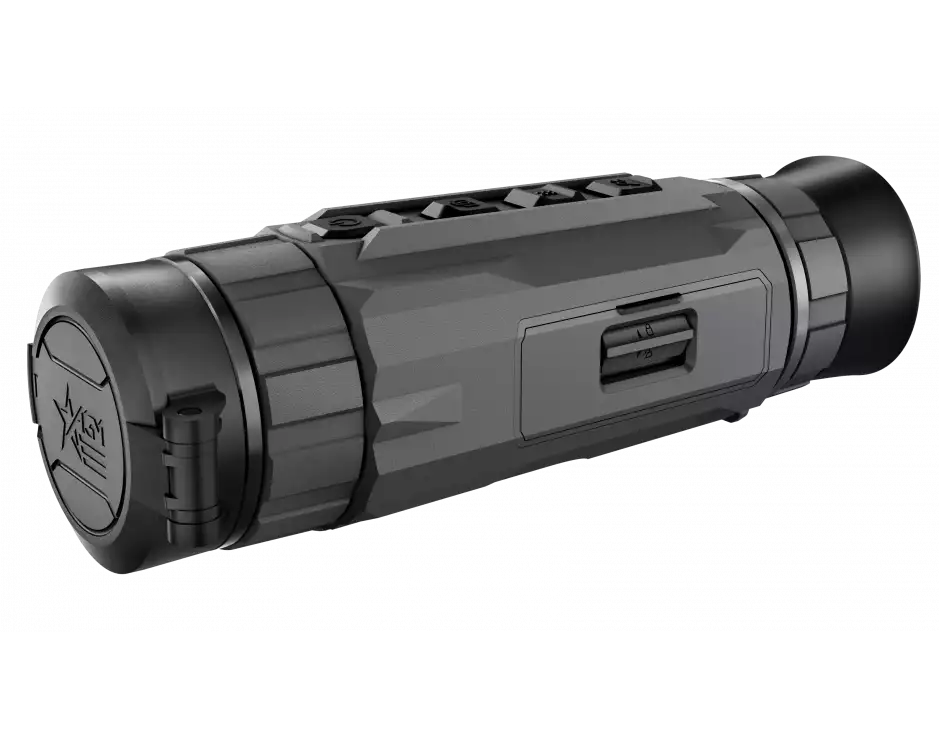

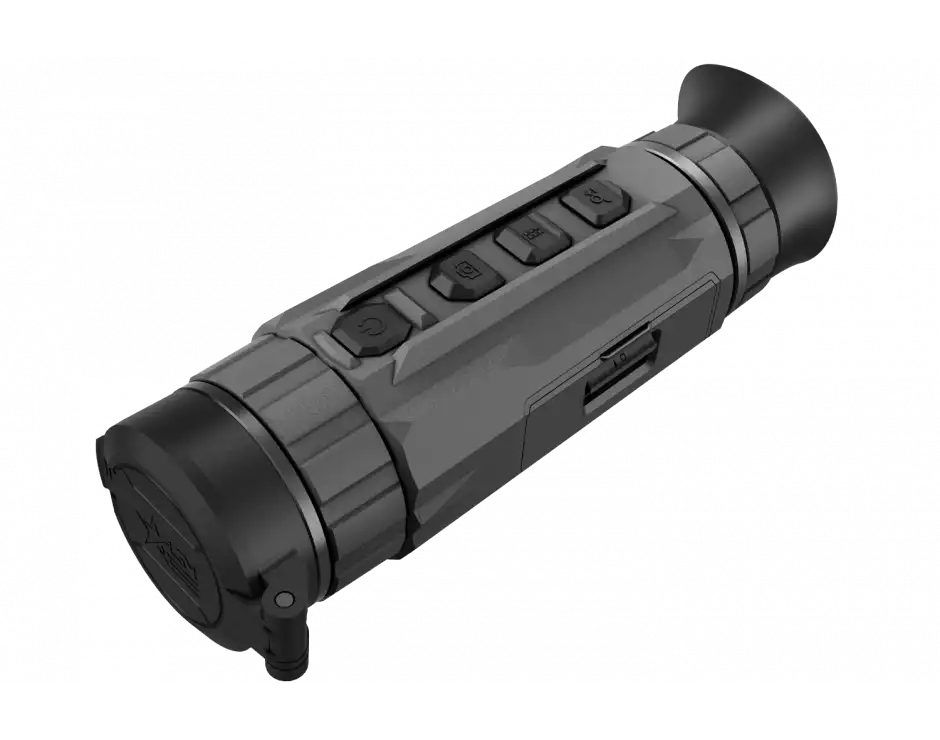

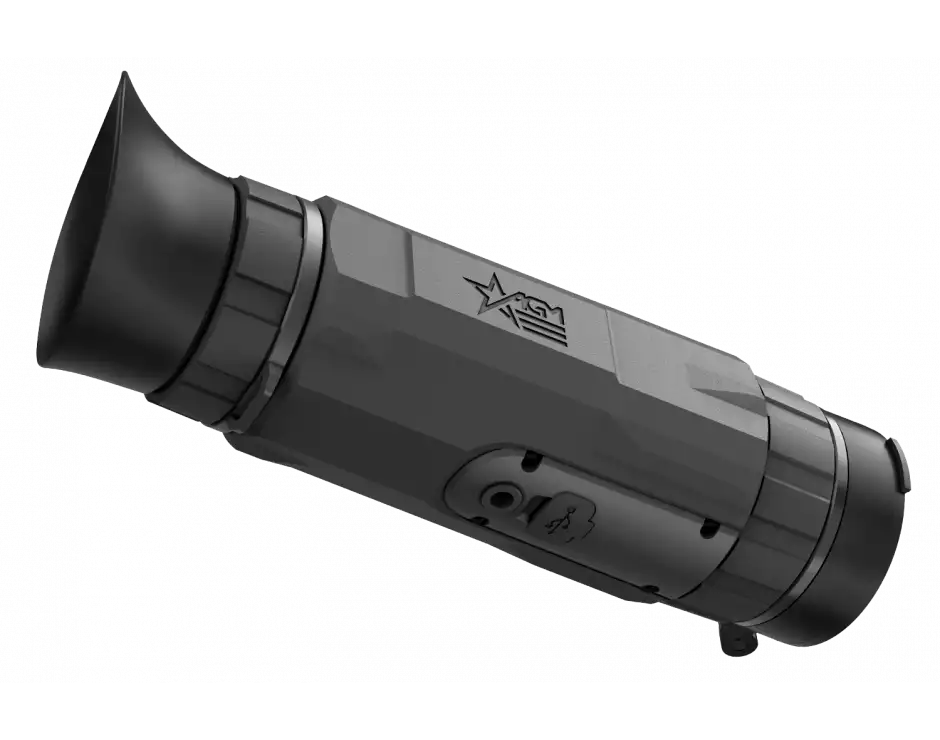

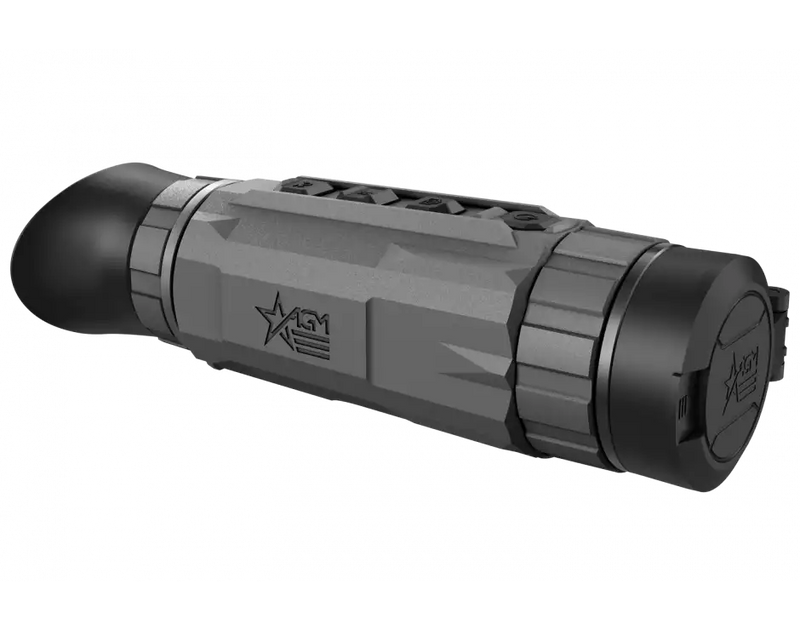

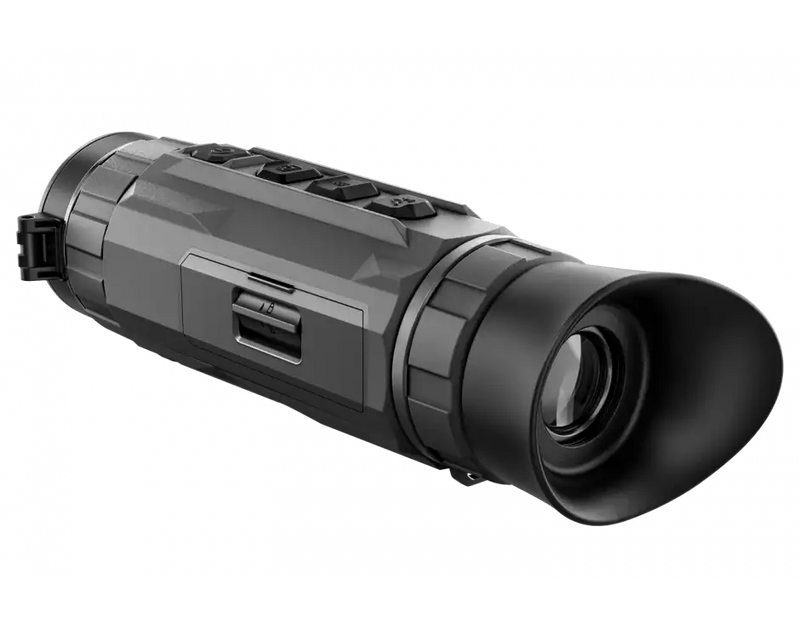

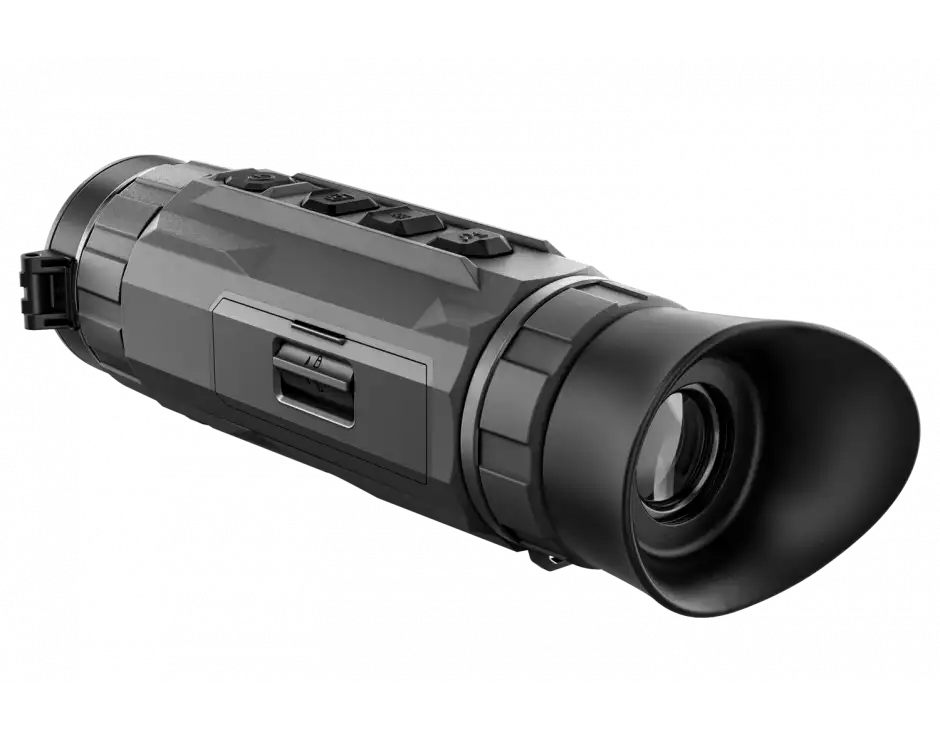

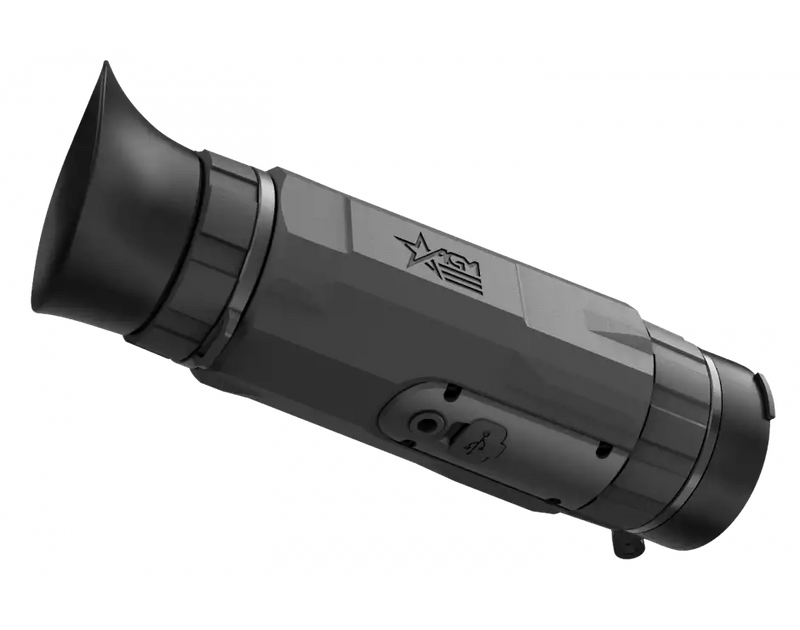

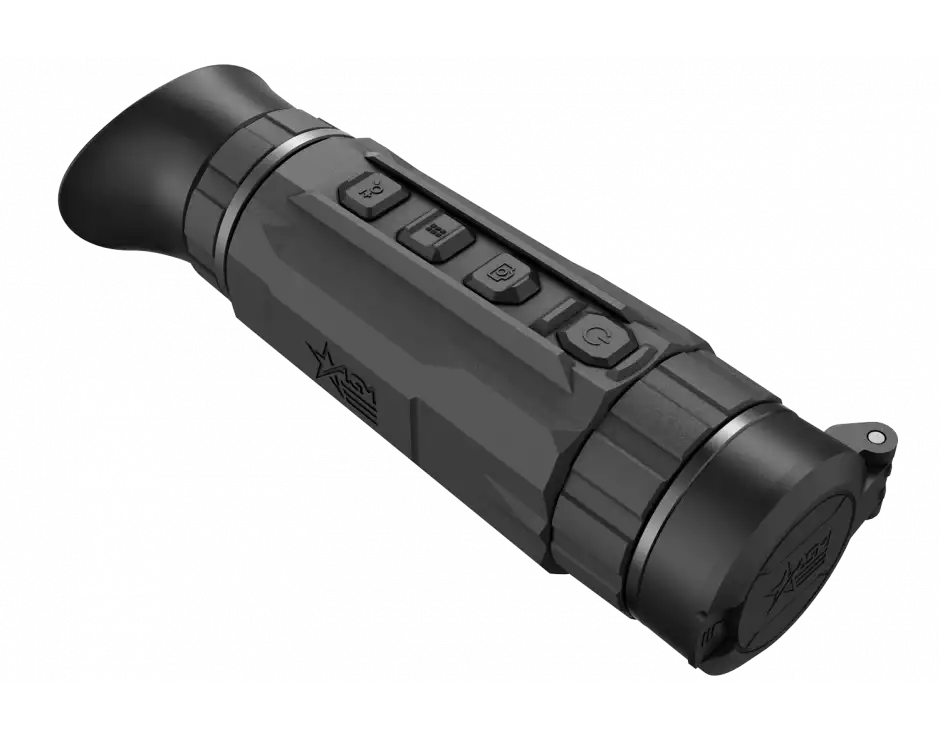

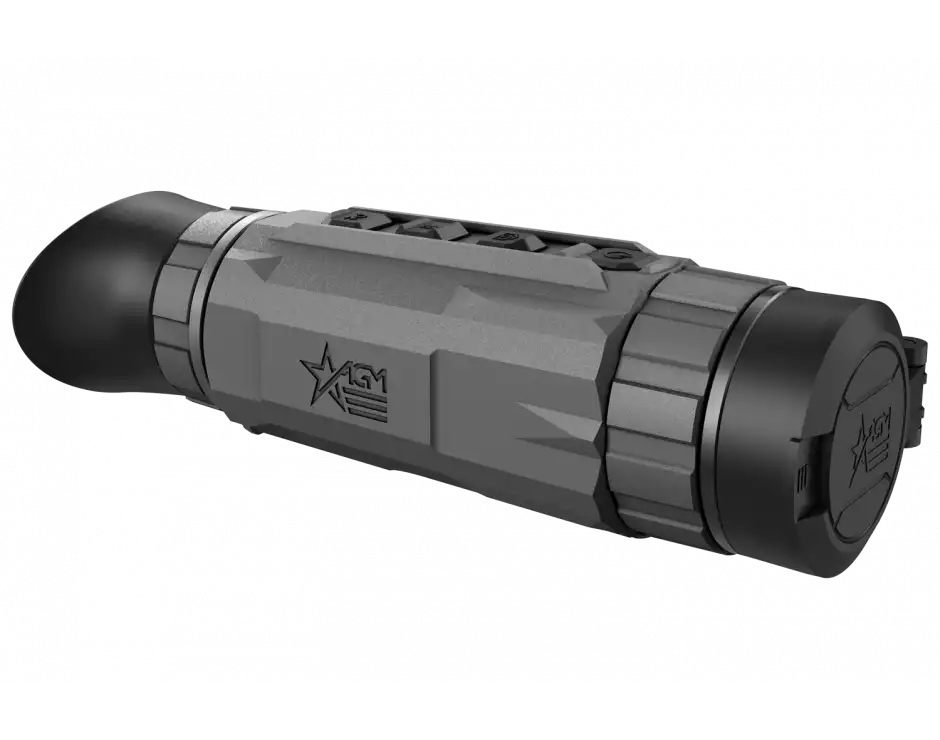

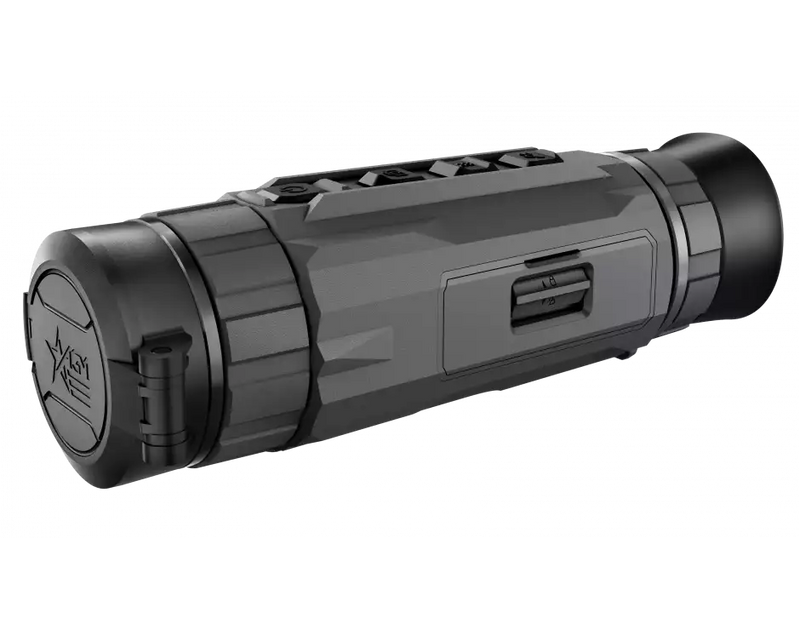

The Sidewinder™ is our premium handheld observational thermal monocular series. All models come equipped with either a 384×288 or 640×512 twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The Sidewinder thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20
millikelvin across the entire product family. Other improvements over the Taipan monoculars include a more robust body/housing and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.
The Sidewinders built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video recording and image capturing. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security,
conservation, anti-poaching, camping, hiking and different marine applications.

Warning: California's Proposition 65

Government Export Restriction:


  • 12μm, 384×288 resolution detector
  • Highest thermal sensitivity (NETD <20mK)
  • Advanced image processing (Digital Detail Enhancement,
  • digital Noise Reduction and NLM algorithm)
  • 50 Hz image frame rate
  • 1024×768 resolution OLED display
  • Built-in memory supports video/audio recording and
  • snapshot capturing
  • 64 GB memory module
  • Wi-Fi hotspot
  • 1×, 2×, 4× and 8× digital zoom
  • Replaceable and rechargeable Li-Ion battery
  • Up to 7 hours continuous running
  • External power supply capability
  • Waterproof
  • 5-Year warranty
CHARACTERISTICS

Detector type: Vanadium Oxide Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 384 × 288

FOV: 10.5° × 7.9°


PACKAGE INCLUDES
  • Battery Charger
  • USB Cable
  • Power Adapter (US and EU plugs included)
  • 18650 Rechargeable Battery
  • Lens Cloth
  • Wrist Strap
  • Carrying Case
  • User Manual
  • Protective Bag
  •





    SPECIFICATIONS


    Palettes

    Black Hot, White Hot, Red Hot, Fusion

    Dimensions

    188 × 58 × 65 mm (7.4 × 2.3 × 2.6 in)

    Interface

    USB Type-C

    Pixel Interval

    12 μm

    Detector type

    Vanadium Oxide Uncooled Focal Plane Array

    Response Waveband

    8μm to 14μm

    FFC (Flat Field Correction)

    Auto, Manual, External Correction

    Highest Temperature Spot Tracking

    Yes

    Standby Mode

    Yes

    Refresh rate

    50 Hz

    Aperture

    F1.0

    Detection Range (6' object)

    1250 m

    NETD

    ≤ 20 mk (@25°C), F#=1.0

    Optical magnification

    2× - 16×

    Lens (focal length)

    25 mm

    Power

    5 VDC/2 A, 1.75 W

    Field of view (H × X)

    10.5° × 7.9°

    Digital zoom

    1×, 2×, 4×, 8×

    Diopter adjustment range

    -5 to +3 dpt

    Monitor

    1024×768, OLED

    Storage

    Built-in memory (64 GB)

    Record Video

    Yes (on-board)

    Capture Snapshot

    Yes

    Battery Type

    One 18650 Replaceable rechargeable Lithium battery

    Wi-Fi

    Yes

    Battery Operating Time

    Up to 7 hours

    Weight

    500 g (1.1 lb)

    Working Temperature/ Humidity

    -30°C to 55°C (-22°F to 131°F)

    Protection Level

    IP67

    AGM Sidewinder TM25-384 Thermal Handheld Monocular
    $1,879.00
